Marine environments are among the most demanding conditions for metallic materials. Constant exposure to seawater, chloride ions, high humidity, salt spray, changing temperatures, biological activity, and mechanical loading can rapidly damage many conventional metals.
For engineers, shipbuilders, offshore contractors, heat exchanger manufacturers, and marine equipment buyers, corrosion resistance is therefore one of the most important factors when selecting plate materials.

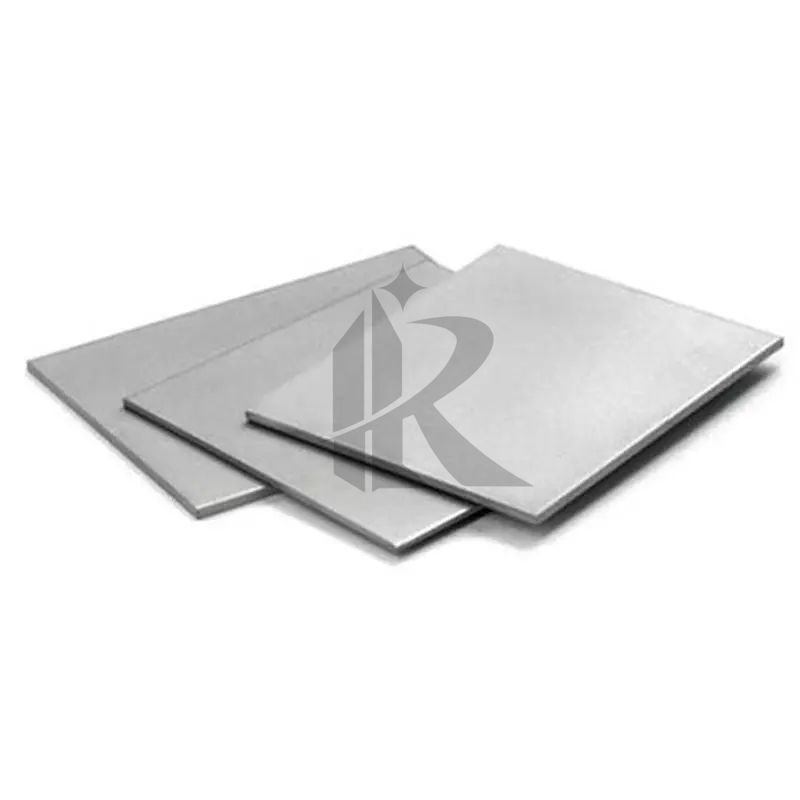

Titanium plate is highly corrosion-resistant in marine environments, particularly in natural seawater and chloride-containing conditions. Its resistance comes from a stable, tightly adherent titanium oxide film that forms naturally on the metal surface. When properly selected and fabricated, titanium plate can provide long service life with significantly lower corrosion-related maintenance requirements than many conventional metallic materials.
However, titanium is not completely immune to every type of corrosion. Grade selection, operating temperature, crevice geometry, chemical concentration, fabrication quality, and actual service conditions should all be considered before specifying titanium plate for a marine project.
This guide explains why titanium performs so well in seawater, where it is commonly used, what limitations buyers should understand, and how to select titanium plate for marine applications.
Titanium is chemically active as a metal, but in most oxygen-containing environments its surface reacts almost immediately to form a thin protective oxide layer.
This passive film is the main reason titanium plate performs exceptionally well in marine applications.
The oxide film is:
Stable in many chloride-containing environments
Strongly bonded to the titanium substrate
Resistant to penetration by seawater
Capable of reforming if the surface is scratched and oxygen or moisture is available
Protective over a wide range of marine operating conditions
This self-passivating characteristic is particularly important in seawater because chloride ions can penetrate or destabilize the passive films of many other metals.
For example, stainless steels may experience pitting or crevice corrosion in chloride-rich environments if the alloy grade, temperature, or oxygen conditions are unsuitable. Carbon steel normally requires coatings, cathodic protection, corrosion allowance, or regular maintenance.
Titanium, by contrast, can remain passive in many natural and flowing seawater applications.
Titanium has extremely good resistance to general corrosion in clean natural seawater.
This makes titanium plate particularly attractive for equipment that remains continuously exposed to seawater for long periods.
Typical conditions include:
Seawater cooling systems
Offshore processing equipment
Marine heat exchangers
Desalination plants
Shipboard piping and equipment
Seawater intake systems
Condensers
Coastal industrial equipment
Marine chemical processing systems
One important advantage is that titanium does not usually require a large corrosion allowance for many seawater applications.
When conventional steel equipment is designed, engineers may increase wall thickness to compensate for expected metal loss during service. Titanium's very low general corrosion rate can reduce the need for this additional material.
For long-life equipment, the value of titanium therefore should not be evaluated only according to the initial plate price.
Lifecycle factors may include:
Replacement frequency
Shutdown costs
Cleaning requirements
Coating maintenance
Leak risk
Product contamination
Equipment accessibility
Offshore labor costs
For critical marine equipment where maintenance is expensive, the total lifecycle economics can make titanium highly attractive.
Stainless steel is widely used in marine equipment, but titanium often provides stronger resistance under aggressive chloride exposure.
The actual comparison depends heavily on the stainless steel grade.
| Property | Titanium Plate | Stainless Steel |
|---|---|---|
| General seawater corrosion resistance | Excellent | Varies by alloy grade |
| Chloride pitting resistance | Excellent in many seawater conditions | Can be a concern |
| Crevice corrosion resistance | Very good, but service conditions matter | Often a major design consideration |
| Density | Approx. 4.5 g/cm³ | Approx. 7.9–8.0 g/cm³ |
| Strength-to-weight ratio | High | Moderate to high |
| Maintenance requirement | Generally low | Depends on alloy and exposure |
| Initial material cost | Higher | Usually lower |
| Long-term marine service potential | Excellent | Application-dependent |
Titanium therefore tends to be considered where corrosion reliability is more important than minimizing the initial raw material cost.
In less severe environments, suitable grades of stainless steel may remain the more economical option.
Carbon steel remains common in ships, offshore structures, tanks, and marine equipment because it is widely available and relatively inexpensive.
Its major limitation is corrosion.
Unprotected carbon steel exposed to seawater can experience continuous metal loss. Protection normally depends on combinations of:
Marine coatings
Cathodic protection
Sacrificial anodes
Corrosion inhibitors
Increased material thickness
Inspection and repainting programs
Titanium plate generally requires much less corrosion protection in compatible seawater applications.
This is especially valuable for:
Internal components that are difficult to repaint
Heat exchanger surfaces
Equipment exposed to continuously flowing seawater
Components requiring very high reliability
Installations where unplanned shutdowns are expensive
The trade-off is higher initial material cost.
For this reason, engineers usually perform a lifecycle cost comparison rather than judging titanium only on the purchase price per kilogram.
Chloride is extremely important in marine corrosion engineering because seawater contains a substantial concentration of chloride ions.
Fortunately, titanium's passive oxide film is highly stable in many chloride environments.
This is one of the material's greatest advantages.
Titanium plate can resist many forms of chloride-related attack that cause problems for less resistant alloys.
However, the statement “titanium is resistant to chlorides” should not be interpreted as “titanium cannot corrode under any chloride condition.”
Risk may increase under combinations involving:
High temperatures
Very tight crevices
Low oxygen availability
Concentrated chloride solutions
Highly acidic environments
Unusual chemical contamination
Therefore, seawater temperature and equipment geometry should always be included in material selection.
Titanium has excellent resistance to pitting in many seawater applications.
Pitting corrosion is a localized form of attack where the passive film breaks down at isolated areas, producing deep cavities while the surrounding surface remains relatively unaffected.
This is particularly dangerous because significant penetration can occur without large overall material loss.
Titanium's stable oxide film provides excellent protection against this mechanism in normal seawater service.
This is one reason titanium is widely considered for seawater-contact equipment where localized corrosion would create unacceptable leakage or reliability risks.
Crevice corrosion deserves more attention than general corrosion when designing titanium equipment.
Crevices may develop around:
Gaskets
Bolted joints
Flanges
Deposits
Tube-to-tubesheet connections
Overlapping surfaces
Poorly designed weld details
Restricted-flow regions
Inside a tight crevice, oxygen can become depleted. Local chemistry can then differ significantly from that of the surrounding seawater.
Under sufficiently severe combinations of temperature, chloride concentration, acidity, and geometry, some titanium grades can become susceptible to crevice attack.
Engineering controls may include:
Eliminating unnecessary tight crevices
Improving drainage
Avoiding stagnant regions
Selecting a more resistant titanium alloy
Reviewing gasket and flange design
Controlling fabrication tolerances
Matching alloy grade to operating temperature
For demanding seawater systems, Grade 7, Grade 12, or other alloyed titanium grades may sometimes be evaluated when commercially pure titanium does not provide sufficient margin.
Selecting the appropriate titanium grade is just as important as choosing titanium itself.
Titanium Grade 2 is one of the most widely used commercially pure titanium grades.
It combines:
Excellent corrosion resistance
Good strength
Good weldability
Good formability
Broad industrial availability
Common marine applications may include:
Seawater heat exchangers
Condenser components
Desalination equipment
Marine piping components
Process vessels
Offshore equipment
For many general seawater applications, Grade 2 is often one of the first materials engineers evaluate.
Grade 1 has lower strength but excellent ductility and formability.
It can be considered where extensive forming is required and mechanical strength requirements are relatively moderate.
Typical advantages include:
Excellent formability
Good corrosion resistance
Good weldability
High ductility
Grade 7 is titanium with a small palladium addition.
The alloy is selected primarily for improved corrosion resistance in certain reducing, acidic, or crevice-prone environments.
It may be considered when service conditions are more aggressive than those normally handled by commercially pure Grade 2 titanium.
Because Grade 7 is more expensive, it is generally specified when the process environment justifies the additional corrosion resistance.
Grade 12 contains alloying additions that improve strength and corrosion performance under certain conditions.
It may be evaluated for:
Elevated-temperature service
Heat exchanger components
Chemical processing equipment
More aggressive chloride environments
Grade 12 can provide a useful balance between corrosion resistance, strength, and cost for selected applications.
Grade 5, commonly known as Ti-6Al-4V, is primarily selected for its high strength rather than because it offers the best corrosion economics.
Its properties include:
Very high strength
Low density
Excellent strength-to-weight ratio
Good seawater resistance
Good fatigue performance
Marine uses may include highly loaded components rather than large corrosion-resistant process plates.
If corrosion resistance is the primary requirement and strength demands are moderate, commercially pure grades may offer better cost efficiency.
Titanium plate is used where equipment must withstand long-term contact with seawater while maintaining reliability.
Heat exchangers are among the most important marine applications for titanium.
Seawater is frequently used as a cooling medium, but its chloride content can create corrosion problems for conventional metals.
Titanium components may be used in:
Plate heat exchangers
Shell-and-tube heat exchangers
Seawater coolers
Marine condensers
Process cooling systems
Benefits include high resistance to seawater corrosion and reduced risk of premature tube or plate failure.
Desalination plants process enormous quantities of saline water.
Corrosion resistance is therefore essential for long-term plant reliability.
Titanium may be used for components exposed to:
Raw seawater
Concentrated brine
Process cooling water
Heat transfer conditions
Applications can include evaporator components, condensers, heat exchangers, piping, and structural parts.
Offshore platforms expose equipment to saltwater, salt spray, humidity, wind, temperature fluctuations, and difficult maintenance conditions.
Titanium can be used in selected components where corrosion failure would create high replacement or shutdown costs.
Applications may include:
Seawater cooling systems
Process equipment
Heat exchangers
Piping components
Pump components
Fasteners
Subsea equipment
Its relatively low density also offers advantages where equipment weight must be controlled.
Titanium may be selected for specialized shipboard equipment requiring strong corrosion resistance.
Applications include:
Seawater piping
Heat exchanger components
Condensers
Pumps
Valves
Propulsion-related components
Firefighting systems
Cooling systems
Titanium is usually used selectively rather than as a replacement for all shipbuilding steel because material cost remains an important factor.
Industrial facilities located near coastlines frequently use seawater for cooling.
Power stations, chemical plants, refineries, LNG facilities, and other industrial sites can therefore face significant chloride corrosion problems.
Titanium plate can be considered for critical areas requiring reliable seawater resistance.
Saltwater aquaculture facilities require equipment capable of operating continuously in highly corrosive surroundings.
Titanium's corrosion resistance and long service life can make it suitable for:
Heat transfer systems
Pumps
Process equipment
Tanks and vessels
Water-treatment equipment
Water velocity is an important material-selection factor.
Flowing seawater can cause erosion-corrosion in some materials when protective corrosion films are mechanically removed.
Titanium's passive film is strongly adherent and reforms rapidly when sufficient oxygen is available.
As a result, titanium generally performs very well in moving seawater.
This makes it attractive for:
Pumps
Condensers
Heat exchangers
Seawater piping
High-flow cooling systems
However, actual performance still depends on component design, flow velocity, entrained solids, cavitation, temperature, and geometry.
Yes. Titanium typically performs extremely well in salt-spray and coastal atmospheric environments.
Marine atmospheric corrosion is particularly important for:
Offshore structures
Coastal plants
Marine equipment housings
External components
Deck-mounted equipment
Salt deposits combined with humidity can create aggressive surface conditions for steel and some other alloys.
Titanium's naturally passive surface provides strong protection without depending entirely on painted coatings.
This can reduce maintenance requirements for equipment installed in locations where repainting is difficult or expensive.
Titanium is relatively noble when passive.
When titanium is electrically connected to a less noble metal in seawater, the other metal may experience accelerated galvanic corrosion.
Potential combinations include titanium connected to:
Carbon steel
Aluminum
Zinc
Certain copper alloys
The severity depends on several factors:
Relative surface areas
Electrical connection
Seawater conductivity
Temperature
Oxygen availability
Alloy combination
For example, a small carbon-steel fastener connected to a large titanium surface can potentially experience aggressive galvanic attack.
Therefore, mixed-metal marine assemblies require careful galvanic corrosion design.
Possible mitigation methods include:
Electrically isolating dissimilar metals
Selecting compatible fasteners
Applying suitable coatings
Controlling exposed surface area ratios
Reviewing cathodic protection design
Titanium equipment installed around cathodically protected steel structures requires engineering review.
Excessive cathodic polarization can sometimes create conditions associated with hydrogen uptake.
This does not mean titanium cannot be used around cathodic protection systems. It means that electrochemical conditions, alloy grade, temperature, and component design should be properly evaluated.
For offshore or subsea applications, material selection should therefore consider not only seawater corrosion but also the complete corrosion-control system surrounding the titanium component.
Titanium's corrosion resistance does not mean that marine organisms cannot attach to its surface.
Marine biofouling may include:
Algae
Barnacles
Microorganisms
Shellfish
Organic deposits
Biofouling can reduce heat transfer efficiency or restrict flow even if it does not significantly corrode the titanium substrate.
This is particularly relevant for heat exchangers and seawater intake systems.
Maintenance planning may therefore need to address both:
corrosion resistance and biological fouling.
Cleaning procedures should also be compatible with titanium and with any other materials in the equipment.
Corrosion resistance alone is not enough to define the correct material specification.
Marine equipment buyers should provide suppliers with detailed service information.
Specify the required ASTM, ASME, or project-standard grade rather than simply requesting "marine titanium plate."
Typical candidates may include:
Grade 1
Grade 2
Grade 7
Grade 12
Grade 5
The correct selection depends on both corrosion and mechanical requirements.
Thickness should be determined according to:
Design pressure
Mechanical loading
Corrosion allowance requirements
Forming process
Welding requirements
Equipment standard
Safety factor
Using an unnecessarily thick titanium plate can significantly increase project cost.
Temperature strongly influences many corrosion mechanisms.
A material performing well in ambient seawater may have different limitations when exposed to heated chloride solutions or concentrated process streams.
Always provide the maximum design temperature.
Specify whether the environment contains only natural seawater or also:
Acid
Alkali
Chlorine
Oxidizing chemicals
Sulfides
Process contaminants
Concentrated brine
Small changes in chemistry can influence alloy selection.
Titanium fabrication requires appropriate procedures.
Important processes include:
Cutting
Bending
Forming
Welding
Machining
Surface cleaning
Welding is particularly critical because hot titanium readily reacts with oxygen, nitrogen, and hydrogen.
Proper inert gas shielding must therefore be maintained during welding.
Poor fabrication can damage otherwise excellent material performance.
Depending on the specification, buyers may need to define:
Pickled surface
Polished surface
Descaled surface
Machined surface
Surface roughness
Flatness requirements
Surface requirements can influence both functionality and manufacturing cost.
For engineering projects, material traceability is essential.
Typical documentation may include:
Material Test Certificate
Chemical composition
Mechanical properties
Heat number
Plate dimensions
Applicable standard
Inspection records
For critical marine, offshore, pressure-vessel, or heat exchanger applications, buyers should clearly define documentation requirements before production.
A practical purchasing process should begin with the operating environment rather than with the titanium grade.
A typical selection sequence is:
Step 1: Define the seawater conditions
Determine temperature, flow rate, chloride concentration, oxygen conditions, contaminants, and whether the water is natural seawater or concentrated brine.
Step 2: Define the mechanical requirements
Identify plate thickness, tensile strength, design pressure, structural loading, forming requirements, and fatigue conditions.
Step 3: Evaluate localized corrosion risk
Review crevices, gasket joints, stagnant areas, deposits, and elevated-temperature zones.
Step 4: Compare suitable titanium grades
Commercially pure Grade 2 may be sufficient for many marine applications, while more resistant or stronger grades can be evaluated for demanding conditions.
Step 5: Review fabrication requirements
Confirm welding procedure, forming capability, machining tolerances, surface treatment, and inspection requirements.
Step 6: Calculate lifecycle cost
Compare initial material cost with expected maintenance, corrosion protection, shutdown, replacement, and service-life requirements.
This engineering-based approach helps avoid both under-specification and unnecessary use of expensive alloy grades.
Titanium plate is more expensive than carbon steel and many stainless steels on an initial material-cost basis.
However, the correct comparison is often cost over the complete service life of the equipment.
Titanium can become economically attractive where:
Equipment is difficult to access
Replacement requires plant shutdown
Seawater corrosion is severe
Leak prevention is critical
Maintenance labor is expensive
Long design life is required
Equipment operates offshore
Coating maintenance would be difficult
Heat exchanger reliability is important
For low-risk applications where components are easy to replace, a lower-cost material may still be preferable.
For critical marine infrastructure, however, titanium's corrosion resistance can justify its higher upfront cost.
Yes. Grade 2 titanium is widely considered for seawater service because it combines excellent corrosion resistance, useful mechanical properties, weldability, and commercial availability.
Actual suitability should still be confirmed against temperature, water chemistry, crevice conditions, and project specifications.
Titanium does not form the red iron oxide rust associated with carbon steel. Instead, it forms a protective titanium oxide passive film that provides strong resistance to seawater corrosion.
Titanium generally offers stronger resistance to chloride-related corrosion than many common stainless steels. However, higher-alloy stainless steels can also perform effectively in suitable conditions and may have a lower initial cost.
The best choice depends on operating conditions and lifecycle economics.
Yes. Titanium is widely considered for continuously submerged marine applications because of its excellent resistance to natural seawater.
Grade, design, galvanic coupling, crevice conditions, and cathodic protection must still be evaluated.
Titanium remains highly corrosion-resistant across many chloride environments, but increasing temperature can increase the risk of localized corrosion in certain severe conditions.
High-temperature applications require grade-specific evaluation.
Yes. Titanium has good weldability when proper procedures are followed.
The weld zone must be protected from atmospheric contamination using appropriate inert shielding because heated titanium is highly reactive.
There is no single grade that is best for every application.
Grade 2 is commonly used for general seawater service. Grade 7 or Grade 12 may be considered for more demanding corrosion conditions, while Grade 5 is frequently selected where high mechanical strength is required.
Titanium plate is one of the most corrosion-resistant metallic materials available for demanding marine environments.
Its naturally forming passive oxide film provides excellent resistance to seawater, chloride ions, salt spray, and many forms of localized corrosion. These properties make titanium particularly valuable for heat exchangers, desalination equipment, offshore facilities, shipboard systems, seawater cooling equipment, and other applications where corrosion-related failure or maintenance would be costly.
However, successful titanium application requires more than simply specifying "corrosion-resistant titanium." Engineers and procurement teams should evaluate the titanium grade, operating temperature, chloride concentration, water chemistry, crevice geometry, galvanic coupling, fabrication method, plate thickness, and material certification together.
When these factors are correctly matched to the operating environment, titanium plate can provide a combination of long service life, low maintenance requirements, high reliability, and excellent seawater corrosion resistance, making it a strong material choice for critical marine engineering projects.
Copyright © Shaanxi Ruifuxiang Industry And Trade Co., Ltd. All Rights Reserved | Sitemap
