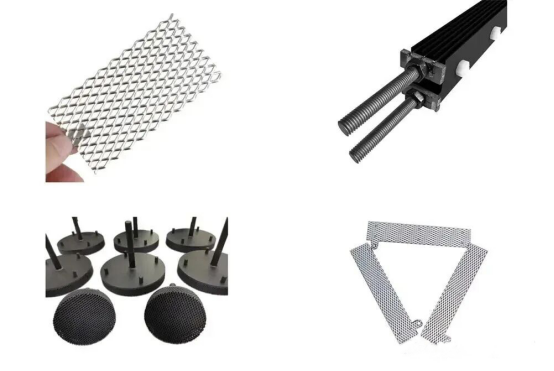

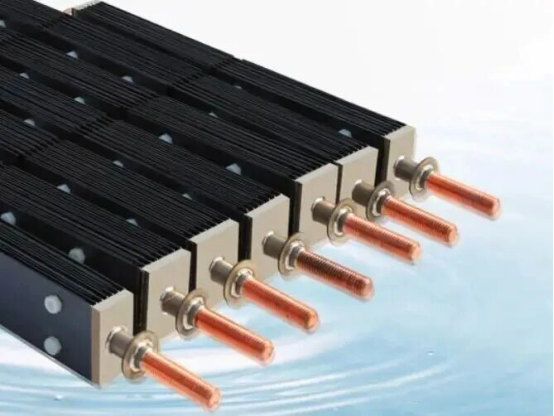

Precious Metal Oxide Coated Titanium Anode: An Energy-Saving High-Efficiency Option for Electroplating & Electrolysis

In industrial production processes including electroplating, electrolysis and copper foil post-treatment, anode materials directly affect current efficiency, energy consumption, plating bath condition and finished product quality. With multiple outstanding advantages, precious metal oxide coated titanium anodes are gradually replacing traditional platinum-plated electrodes and becoming the preferred material in the industry.

I. Core Product Advantages

1. High Current Load Capacity & Long Service Life

This titanium anode can withstand a maximum current density of 10000 A/m², meeting the requirements of high-intensity continuous industrial production. Its surface coating features excellent corrosion resistance and can operate stably for a long time in both acidic and alkaline electrolytes. It greatly extends the service life of the anode and effectively avoids production shutdown losses caused by frequent anode replacement.

2. Remarkable Energy-Saving Performance

From an electrochemical perspective, the oxygen evolution overpotential of traditional platinum-plated electrodes is approximately 1.563 V (vs. mercury sulfate electrode), while that of precious metal oxide coated titanium anodes is only 1.385 V (vs. mercury sulfate electrode). A lower oxygen evolution overpotential reduces cell voltage under the same current density, cutting power consumption.

This energy-saving advantage has been verified in alkaline copper plating tanks for copper foil post-treatment. The cell voltage drops significantly after adoption, delivering substantial electricity cost savings during long-term operation.

3. Stable Chemical Properties & Zero Plating Bath Contamination

The active layer of the product adopts iridium-based ceramic oxide with ultra-high chemical stability, barely soluble in all kinds of acid and alkaline solutions. The coating thickness ranges from 18 to 40 microns with minimal oxide dosage. No harmful impurities will leach into the plating bath during production to maintain long-term bath purity.

It delivers the same cleanliness level as platinum-plated electrodes as a clean anode, making it especially suitable for high-end electroplating processes with strict impurity control such as semiconductor copper plating and precision gold plating.

4. Outstanding Overall Cost Performance

When compared based on equal service life, precious metal oxide coated titanium anodes boast lower comprehensive costs than platinum-plated electrodes. In alkaline copper plating electrolytes, the product performs better in electrochemical stability, electrocatalytic activity and durability. It features lower upfront procurement costs and fewer maintenance & replacement cycles, bringing remarkable overall economic benefits.

II. Typical Application Scenarios

1. Copper Foil Post-treatment: Replace platinum-plated anodes in alkaline copper plating tanks to lower cell voltage, reduce energy consumption and stabilize plating bath conditions.

2. PCB Electroplating: Stable performance under high current density with no impurity precipitation, improving copper plating uniformity.

3. Electrolytic Copper Foil Production: Adaptable to long-term oxygen evolution environments with superior corrosion resistance and energy efficiency versus conventional platinum-plated electrodes.

4. Precious Metal Electroplating: Applied to gold plating, rhodium plating and other processes to prevent impurity precipitation and cross-contamination, guaranteeing coating purity.

5. Hydrogen Production via Water Electrolysis: Used as oxygen evolution anodes to boost electrolysis efficiency and cut energy consumption for hydrogen production via low overpotential.

III. Conclusion

Precious metal oxide coated titanium anodes integrate high current density, low oxygen evolution overpotential, contamination-free performance, long service life and high cost efficiency, serving as a mature technical alternative to traditional platinum-plated electrodes. Currently widely adopted in copper foil processing, PCB electroplating, precious metal electroplating, water electrolysis hydrogen production and other industries, the product has gained wide recognition across the sector thanks to stable operation and considerable energy-saving benefits.
